Applied Materials has unveiled three new semiconductor manufacturing platforms designed to advance chip performance, power efficiency, and yield for next-generation AI and high-performance computing (HPC) devices. The company’s new Kinex, Xtera, and PROVision 10 systems target key areas of the semiconductor stack—advanced packaging, transistor architecture, and metrology—aimed squarely at enabling 2nm and beyond chip production.
The Kinex™ Bonding System, co-developed with BE Semiconductor Industries (Besi), integrates all critical steps of die-to-wafer hybrid bonding into one tool. Hybrid bonding directly connects copper pads between dies, eliminating solder bumps and reducing interconnect resistance and power loss. By merging Applied’s front-end wafer processing with Besi’s precision die placement, Kinex enables sub-micron alignment accuracy, faster drift detection, and clean, low-defect environments essential for chiplet-based GPUs, CPUs, and HBM packages.

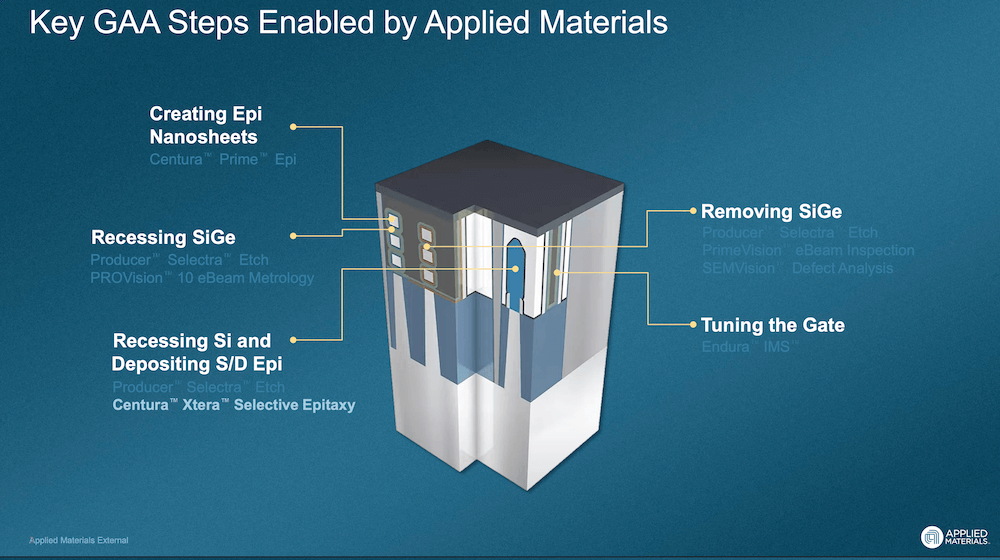

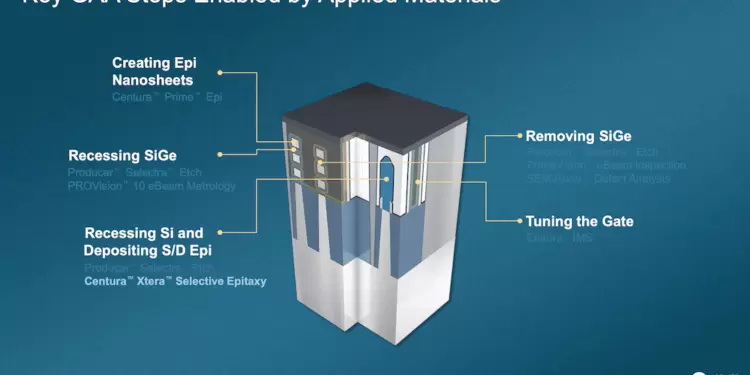

The Centura™ Xtera™ Epi System focuses on fabricating high-performance Gate-All-Around (GAA) transistors at 2nm nodes and smaller. Traditional epitaxial growth can leave voids in deep transistor trenches, degrading reliability. Xtera solves this with a continuous deposition-etch cycle that dynamically widens trenches as material grows, ensuring uniform, void-free epitaxial layers while cutting gas usage by 50%. The result is improved uniformity across billions of nanosheet transistors.
The PROVision™ 10 eBeam Metrology System pushes process control further into the 3D realm. Using cold field emission (CFE) technology, it achieves up to 50% higher image resolution and 10x faster imaging than previous thermal systems. It enables sub-nanometer imaging across multiple layers, detecting nanosheet variations, EUV overlay shifts, and voids in 3D transistors—all vital for yield enhancement in GAA logic and next-generation DRAM and NAND designs.
“Applied is focused on driving materials engineering breakthroughs to provide the performance and power-efficiency improvements needed to scale AI,” said Dr. Prabu Raja, President of the Semiconductor Products Group at Applied Materials.
🌐 Analysis:
This launch underscores Applied Materials’ dominance in the materials engineering domain as the semiconductor industry transitions to 2nm-class and chiplet-based architectures. Hybrid bonding (Kinex) and GAA epitaxy (Xtera) are foundational for next-generation GPU and HBM manufacturing, directly affecting AI chip performance and power efficiency. The PROVision 10 system addresses a growing need for ultra-precise metrology in 3D structures—an area increasingly strained by the limits of optical inspection. These tools position Applied as a critical enabler for TSMC, Samsung, and Intel as they ramp 2nm nodes and 3D-IC packaging for AI workloads.
